Team Integy Universal Off Road Setup Station (1/8th, 1/10th)

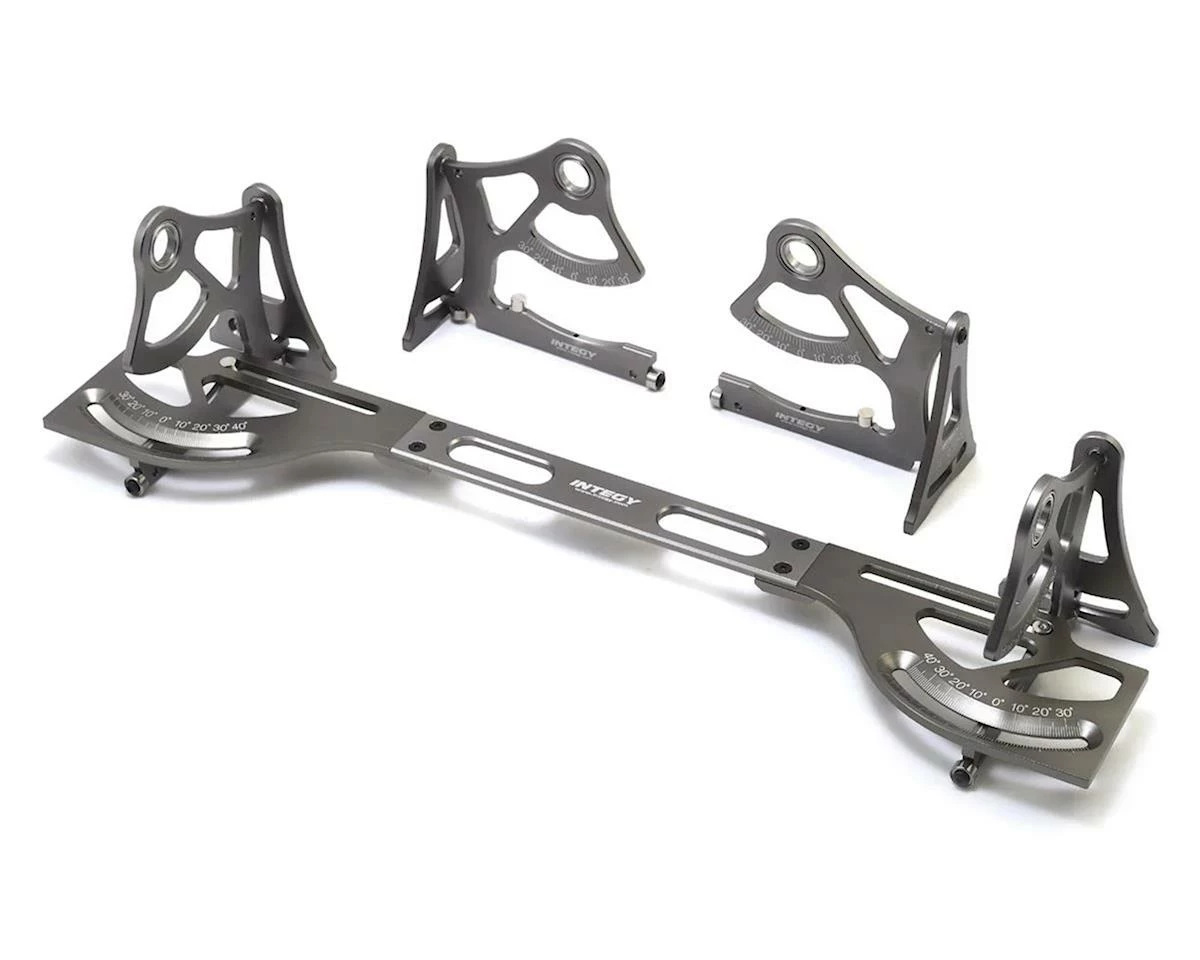

This is the Team Integy Universal Off Road Setup Station for 1/8th and some 1/10th scale off road vehicles. This all in one off road setup system is used to measure Caster, Camber, Toe and Steering Throw Symmetry on off road vehicles. From 1/8 scale buggies and trucks, to 1/10 buggies and monster trucks that previously could not use a setup system due to the axle size, now there is a single setup system that is compatible with all of them, with the addition of the optional adapter sets (not included – must be purchased separately).

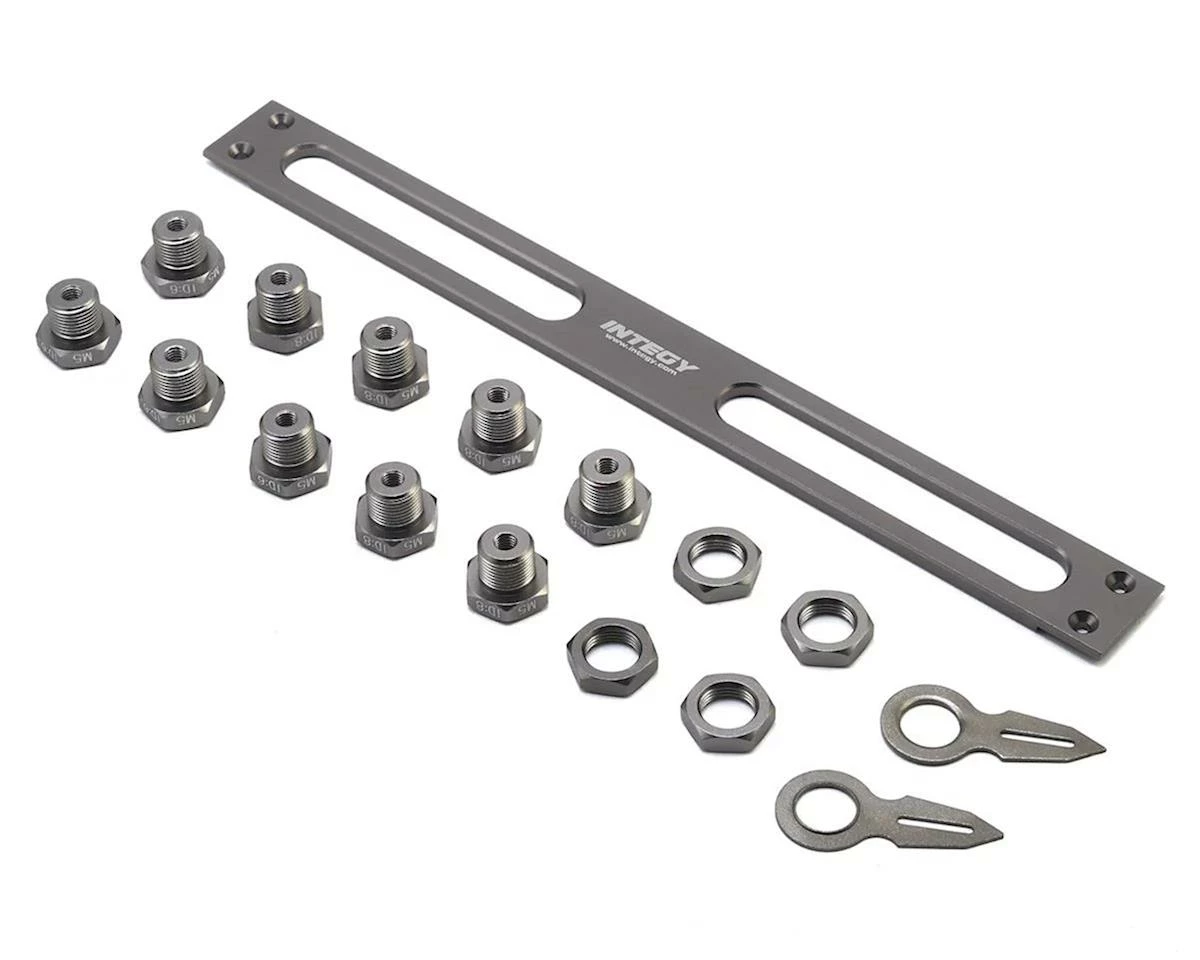

Out of the box, the Universal Setup Station System will work with most 1/8-scale buggy or truggy with standard 1/8-scale axles and 17mm wheel nuts. The Universal Setup Station also includes two sets of adapters: Type-A for vehicles with 6mm x M5-threaded axles such as the Traxxas Revo/T-Maxx 2.5/3.3, HPI E-Savage, and Losi LST1; Type-B adapters for the HPI Savage 2.5/4.6/X/XL which uses 8mm x M5-threaded axles with a reverse thread on one side.

NOTE: Instructions not included.

Optional Adapters:

• Type C Adapters (C23130 – Sold Separately) Fit: Traxxas: Stampede, Rustler, Slash, Jato; HPI: Firestorm, Blitz, Brama 10B, Cyber 10B; 1/10 Touring and Drift Cars, as well as other vehicles with the same size axles.
• Type D Adapters (C23131 – Sold Separately) Fit: Associated: RC18T, RC18B; Losi Mini-T, Mini-LST, as well as other 1/18 vehicles with the same size axles.
• Type E Adapters (C23132 – Sold Separately) Fit: Associated: B4, T4, SC10, as well as other 1/10 vehicles with the same style axles.
• Type J Adapters (C23344 – Sold Separately) Fit: Traxxas 1/16 scale vehicles.

This product was added to our catalog on April 29, 2010
