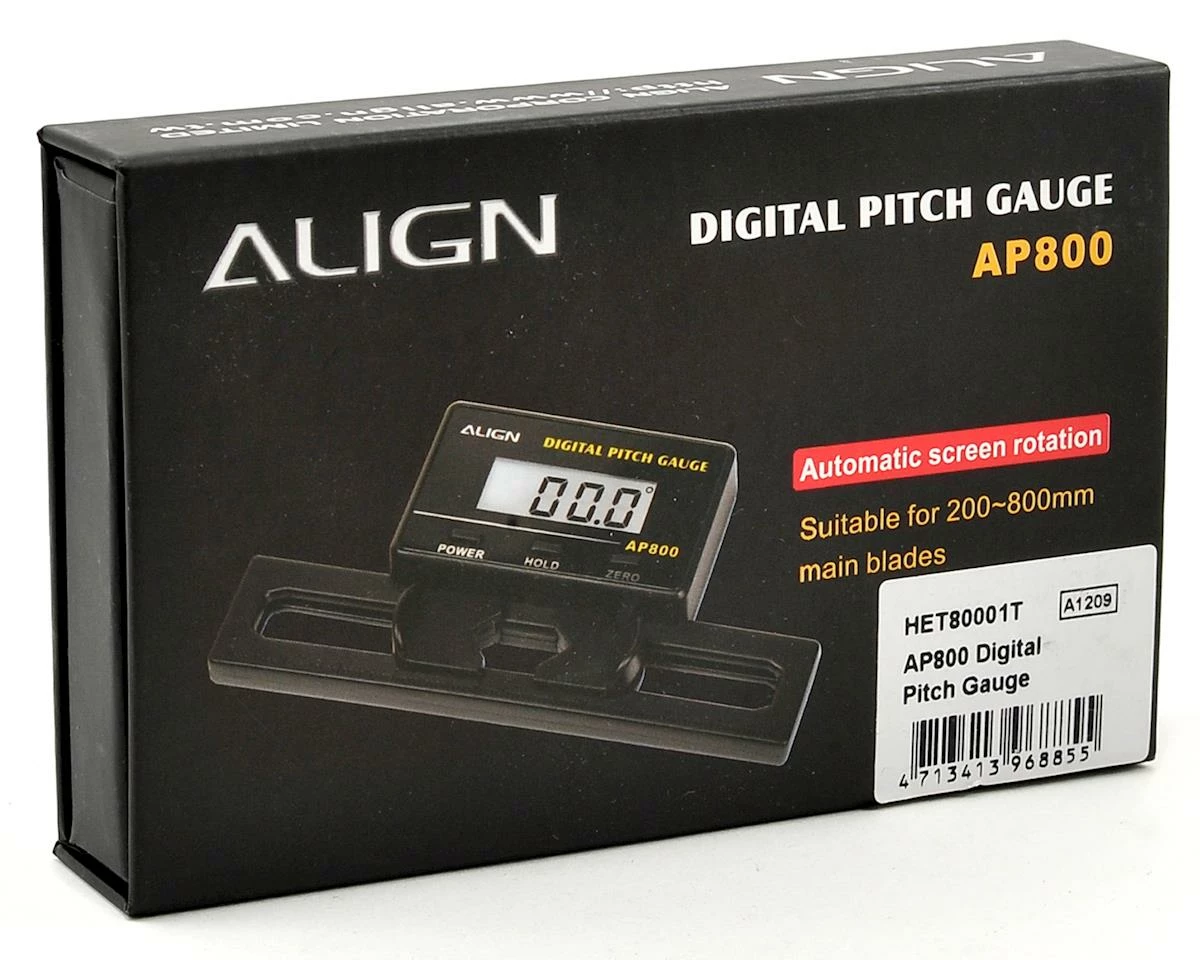

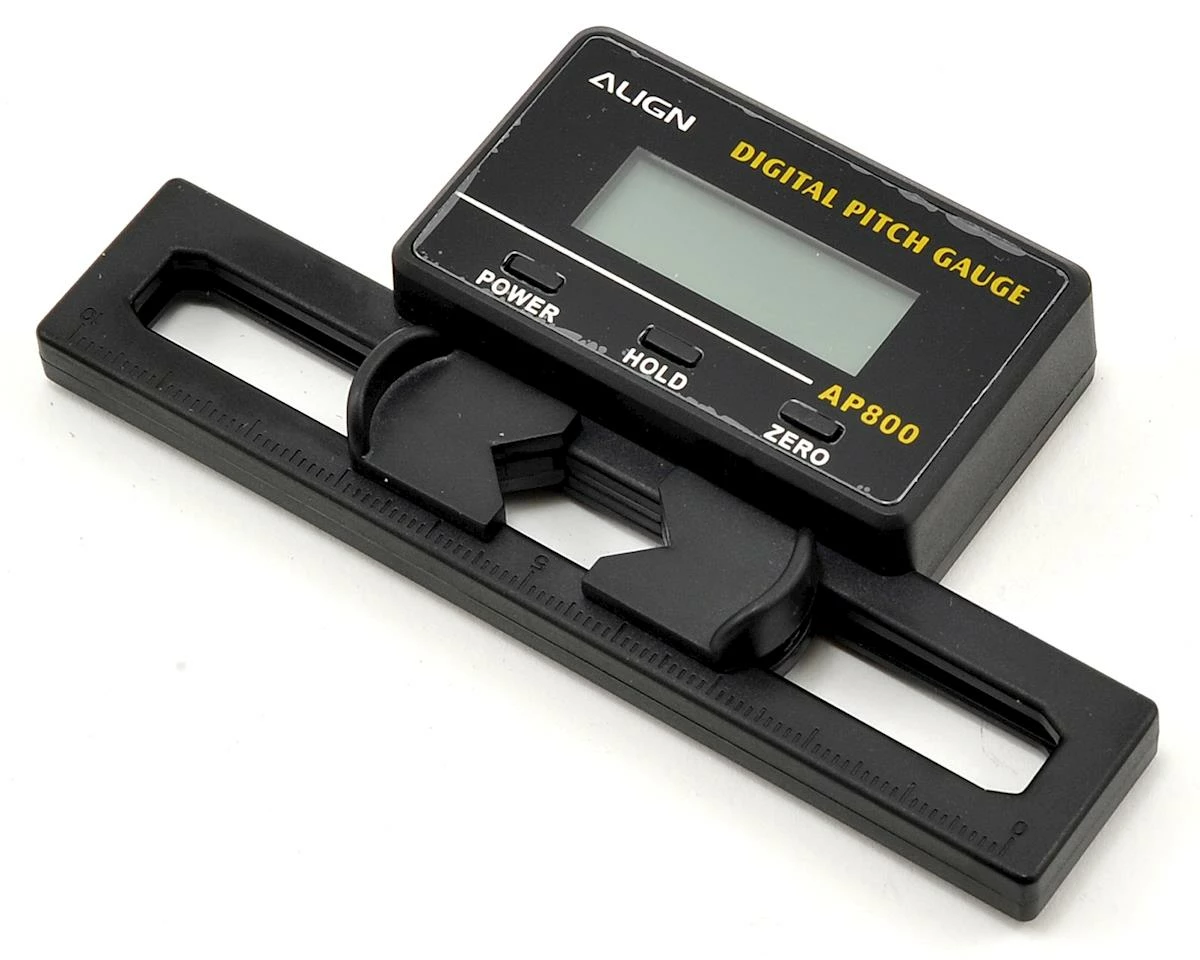

ALIGN AP800 Digital Pitch Gauge

This is the Align AP800 Digital Pitch Gauge. Developed by Align’s R&D team, the AP800 digital pitch gauge is suitable for flybar and flybarless helicopters and features an auto-detecting Horizontal level, and the results are displayed through a high contrast LCD screen, providing a simple and precise way to measure pitch angles.

Features:

• Auto-detecting Horizontal level.
• Uses backlighting LCD monitor.
• Zero and Lock function.
• Detectable pitch range: -90° ~ 90°.
• Automatic screen rotation.
• Suitable for 200~800mm main blades.
• Build-in energy saving function, power shuts down after 3 minutes without any movement.

Specifications:
Body Dimension: 108×53.9x16mm
Suitable blade width: 20mm~74mm
Detectable pitch range: ±90°
Resolution: 0.1°
Battery: 2x CR 2032 Lithium
Weight: 38g (including battery)
